Insertion Turbine Flowmeter (5000 Series) |
|
|
|

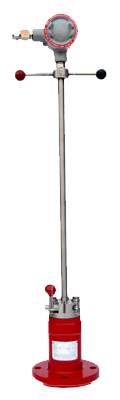

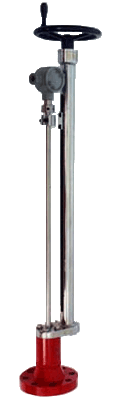

Rockwin’s Series 5000 Insertion Turbine Flowmeter is designed for applications where installation and removal from the pipeline without interruption to flow and economy of cost is important than extreme accuracy of measurement. These are ideally suited for use in large diameter pipelines where the cost of inline meters would be prohibitive. The installation and removal of these meters can be done through a suitable valve while the flow-line remains under pressure. Rockwin's Insertion meters have wide rangeablity & improved linearity.
|
|
|
General Specifications:
| Flow Range |
upto 12 M³/Sec (Liquid)
upto 50 M³/Sec (Gas) |
| Linearity |
+/- 2% of the reading over linear range at viscosities of 5 cst or less.
Higher Accuracy can be assured by In situ calibration or calibration in simulated conditions |
| Repeatability |
+/- 0.2% (95% confidence level) |
| Max Pressure |
Upto 200 Bar |
| Temperature Range |
-50°C to +150°C Standard. Higher Range available on request |
| Electrical connections |
Conduit box with terminal block connections (conduit box specification dependent on certification requirements) |
| Field Electronics |
A range of pre-amplifiers, F/I converters and local display electronics is available. |
|
|
|
|
|
|
|
